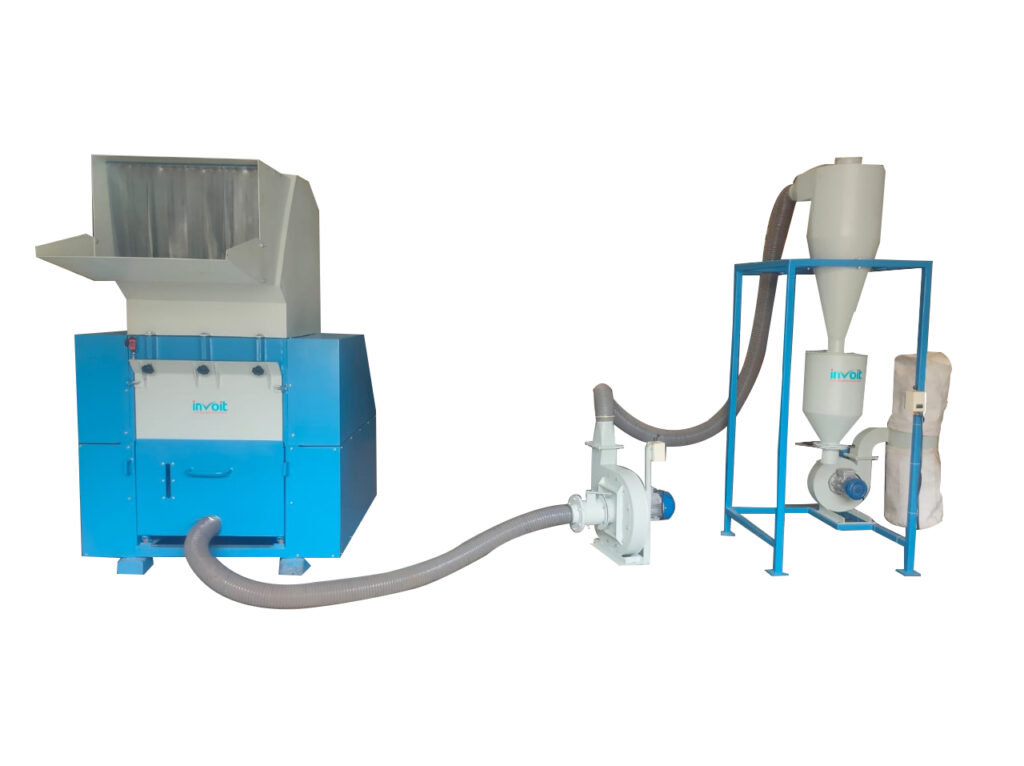

Invoit Plast Machinery Pvt Ltd heavy-duty granulators offer a wide range of rotor designs and hope. Designed specifically for the continuous high-volume recovery of the toughest materials, Polymer Systems’ heavy-duty machines are precision machined with heavy steel plates and stress-relieved weldments throughout. Massive construction of the cutting chamber, rotor, and drive assembly provides maximum rigidity, allowing close knife settings without fear of misalignment or machine damage due to shock loads or continuous operation.
Designed specifically for the continuous high-volume recovery of the toughest materials, Polymer Systems’ heavy-duty machines are precision machined with heavy steel plates and stress-relieved weldments throughout. Massive construction of the cutting chamber, rotor, and drive assembly provides maximum rigidity, allowing close knife settings without fear of misalignment or machine damage due to shock loads or continuous operation.

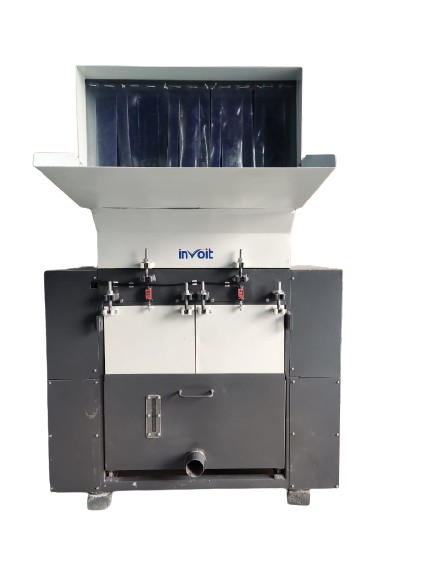

The Pipe and Profile Granulators of the heavy Duty Granulator series are available in rotor widths of up to 1400mm and diameters ranging from 560 to 700 mm. The completely welded heavy steel cutting chamber is angled and fitted with an extended hopper to allow easy feeding of parts. The standard V-cut creates a high-quality regrind with a very low percentage of fines in the output material. Other standard features include a hydraulically opened hopper as well as outboard bearings reducing the risk of contamination.
This unique triple-ply laminate has a thin elastomeric membrane between two sheets of steel, identical to what is used in firewalls of some luxury automobiles. It dramatically reduces noise transmitted through the hopper walls and out the feed opening by dampening the sharp, metallic ringing noise caused by material hitting the inside walls. Double-wall designs offer little noise reduction when compared to our triple-ply design.
